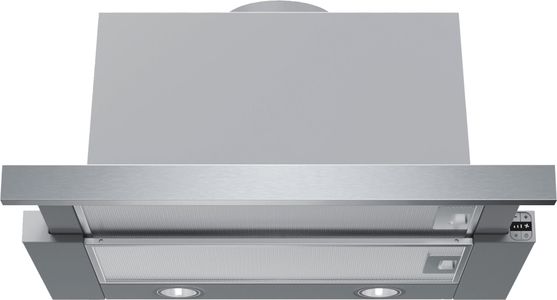

    Bosch® 500 Series 24" Stainless Steel Pull-Out Under Cabinet Hood

    Bosch

    Model #:

    HUI54452UC

    Model #: HUI54452UC
    300716
    Bosch
    $99,999.00

    At a Glance

    Product Dimensions 11.81"h x 23.56"w x 11.81"d

    This sleek pull-out hood allows the user to close the hood when not in use and it installs flush with cabinetry. Four speed touch controls with LCD display. Dishwasher safe aluminum mesh filters.Read More

    Additional Savings Available

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview

    This sleek pull-out hood allows the user to close the hood when not in use and it installs flush with cabinetry.

    Touch controls with LCD display.

    400 CFM integrated blower included.

    Converts to recirculation mode with accessory kit (separate purchase required).

    Design

    Visor is fully extended during use

    Performance

    Bright LED lighting shines throughout the cooking surface

    6" Round Duct at Discharge

    Efficiency

    Absorb odors with charcoal replacement filters

    Convenience

    Convenient timer built into control from 1-60 minutes

    Signal on LCD display will illuminate as a reminder to check filters for cleaning

    Audible tone when select controls are pressed

    Useful Documents
    Manual
    Installation
    Specification Sheet
    Specifications

    General Specs

    Width (in.)23.56
    Height (in.)11.81
    Duct Size (in.)6
    Depth (in.)11.81
    Collection500 Series
    ColorStainless Steel
    PositioningRetractable
    Color Finish NameStainless Steel
    Range Hood TypeUnder Cabinet
    ENERGY STAR CertifiedNo
    Appliance Fit Width (in.)24
    Product Weight (lbs.)24
    Maximum CFM400
    Voltage120
    Frequency60
    Range Hood FeaturesRetractable
    Ventilation TypeConvertible (Both)

    General Properties

    Operating modeConvertible: ducted / recirculating
    Number of speed settings4-stage
    Motor locationIntegrated motor in hood body
    Number of lights2
    Total power of the lamps (W)4 W
    Damper includedYes
    Grease filter materialAluminum
    Grease filter typeMultilayer cassette

    Technical Details

    Plug type120V-3 Prong
    Power cord length (in.)45 1/2"

    Dimensions

    Required distance above cooktop/range cooking surface24"-34" electric / 29 1/2"-34" gas
    WarningProposition 65 Warning for California Residents
